Art.-Nr. 30110

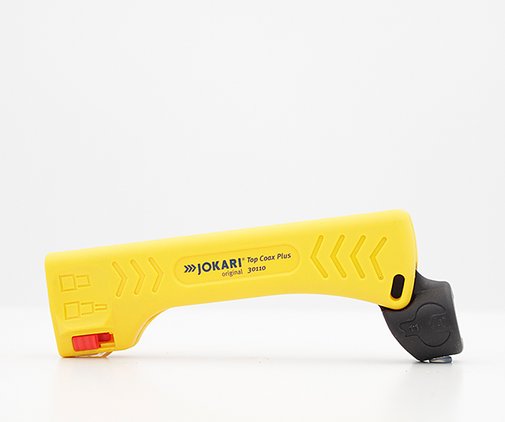

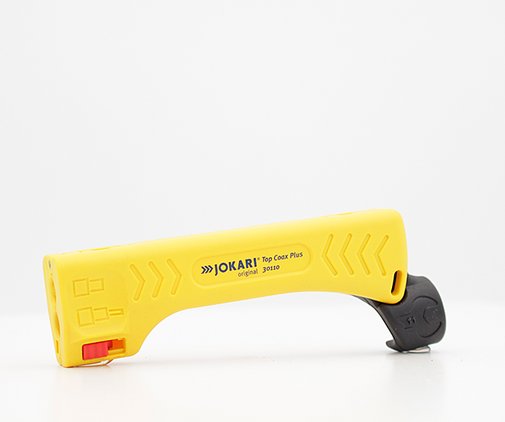

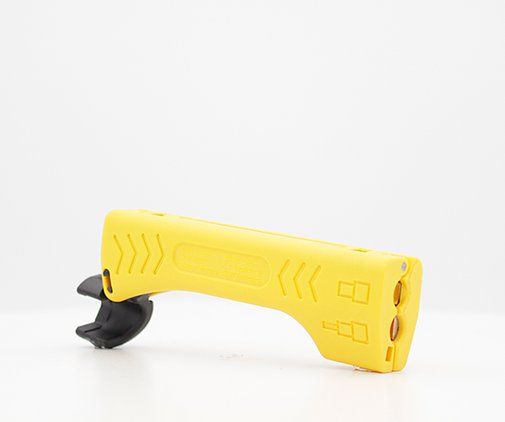

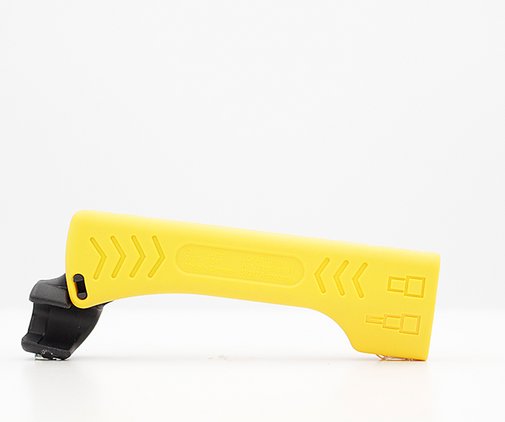

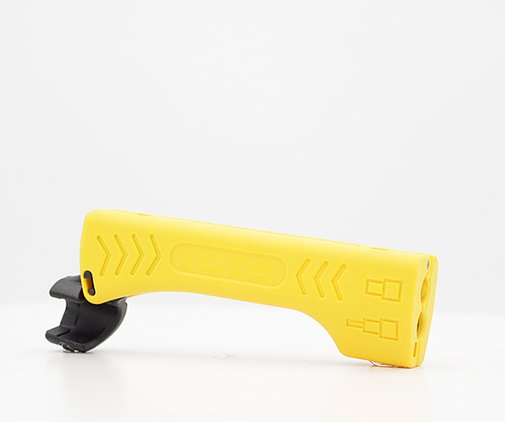

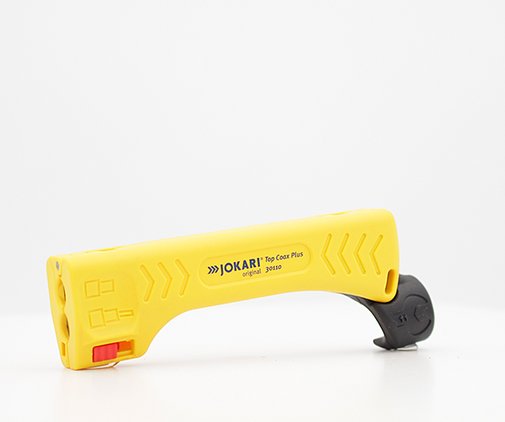

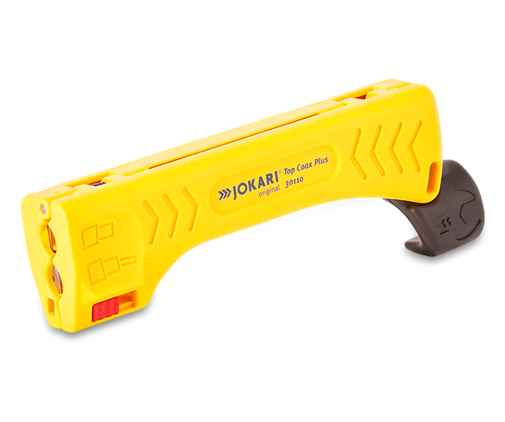

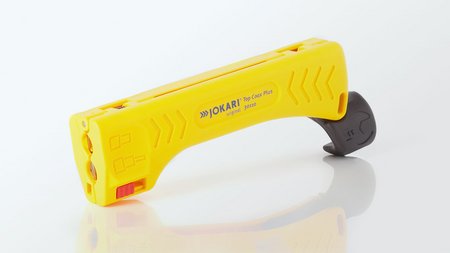

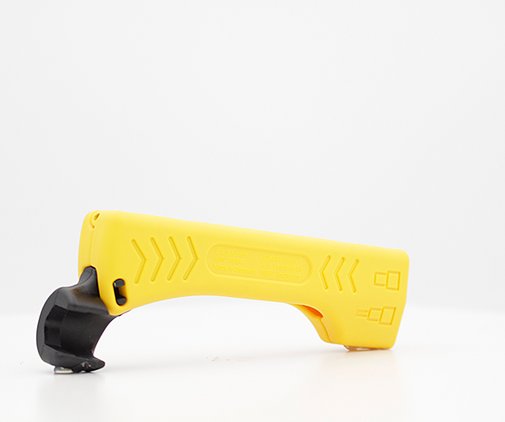

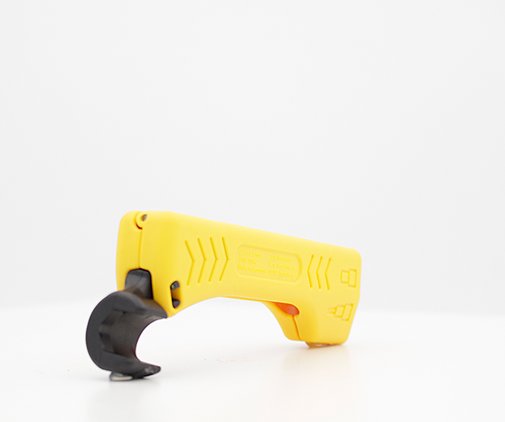

Cable Stripper Top Coax Plus

Coaxial cables ø 4.8-7.5mm | 3/16“ - 19/64“

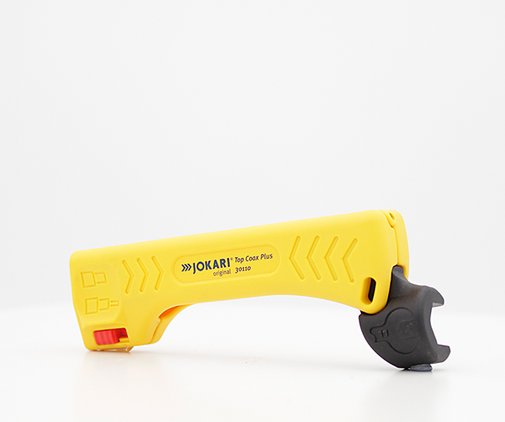

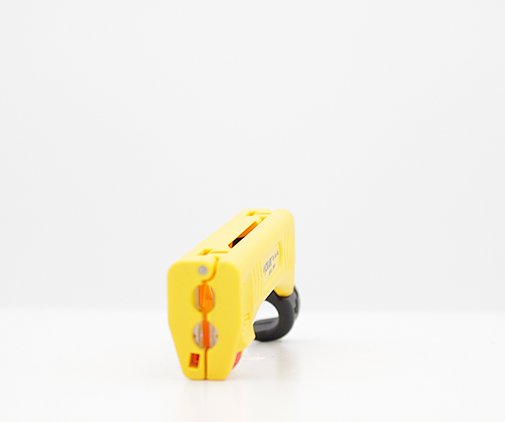

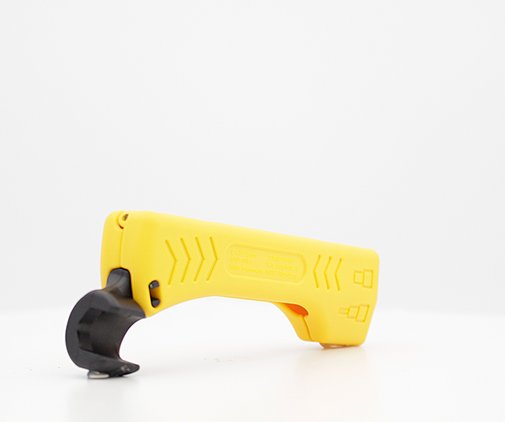

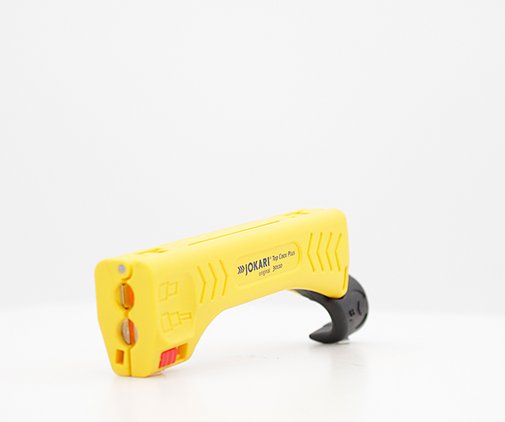

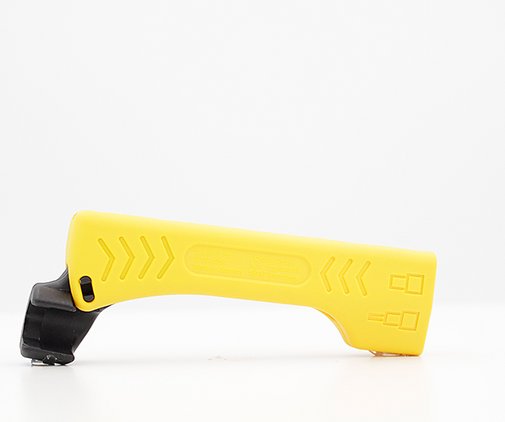

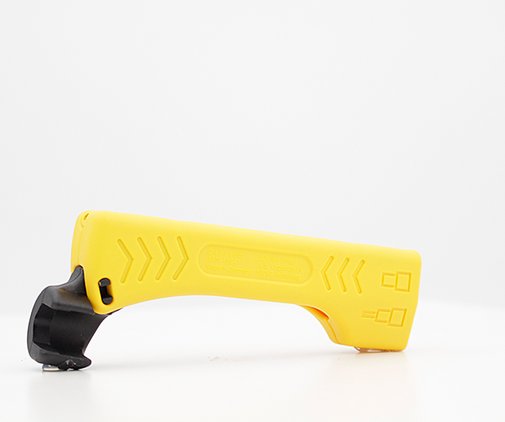

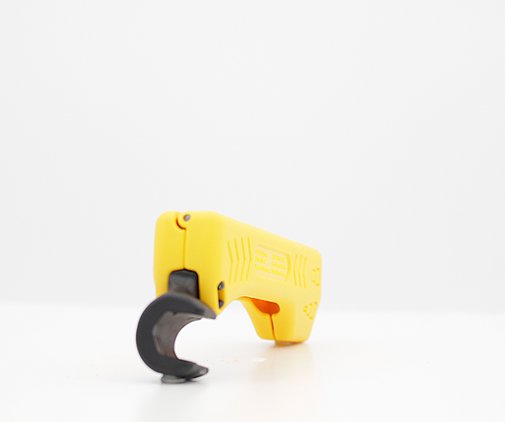

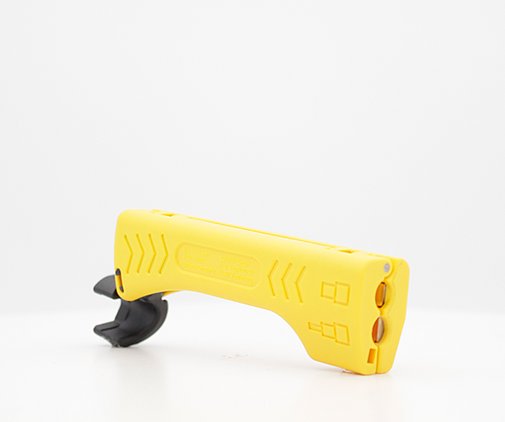

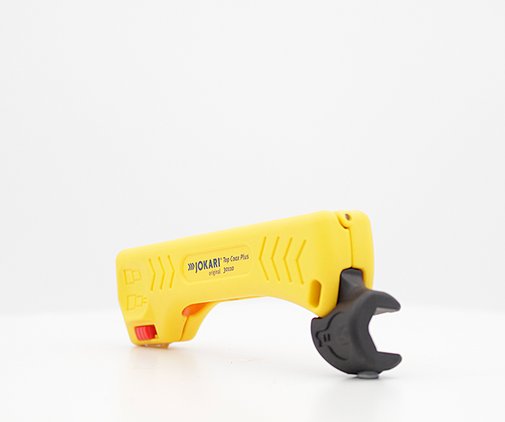

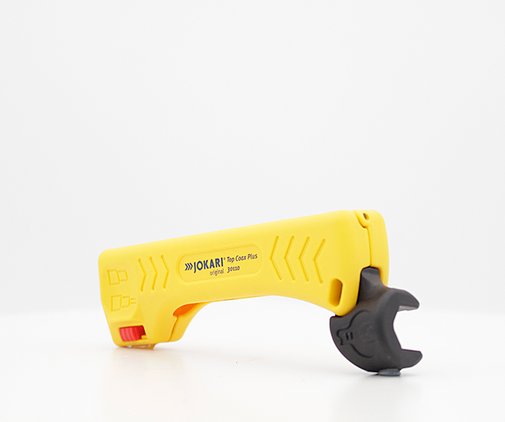

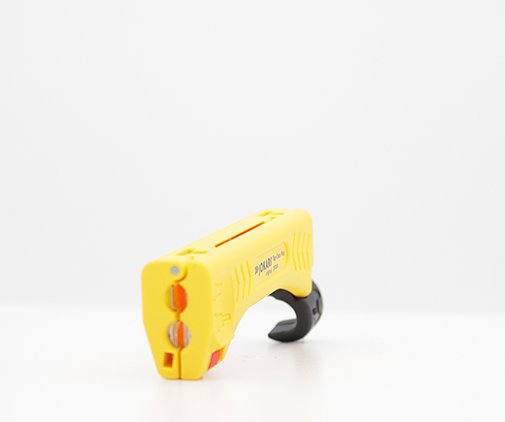

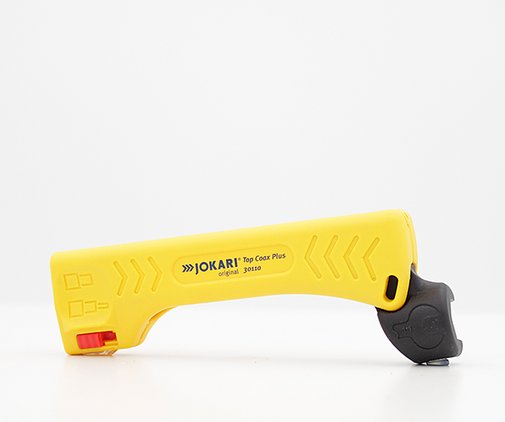

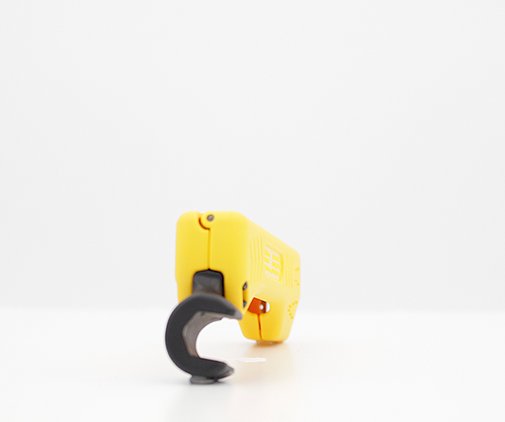

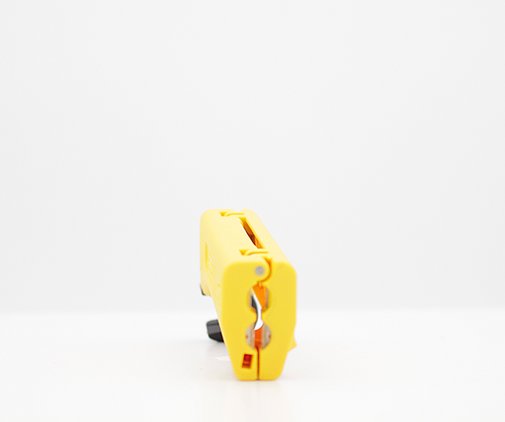

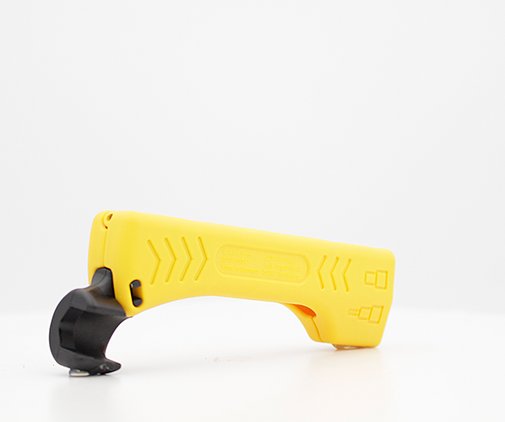

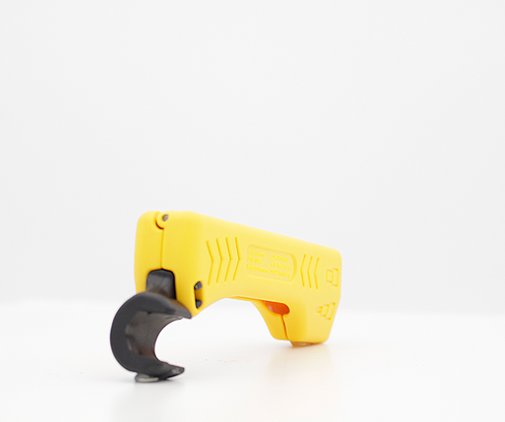

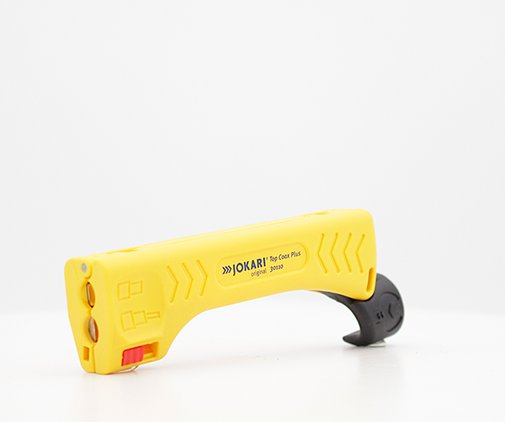

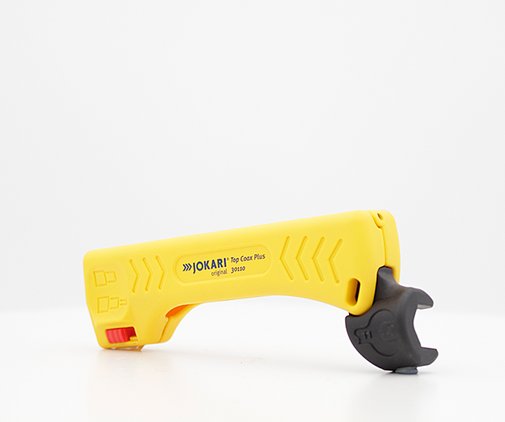

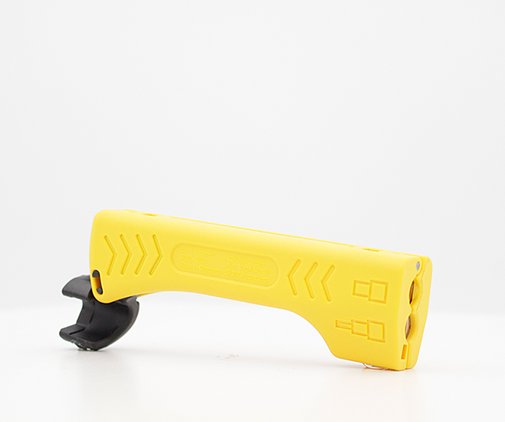

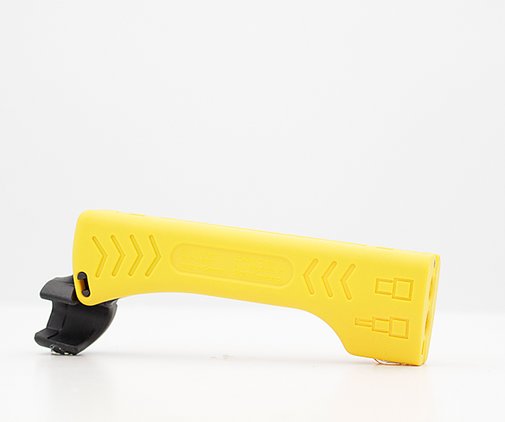

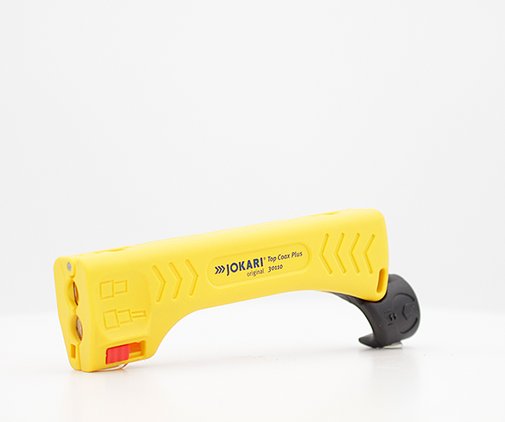

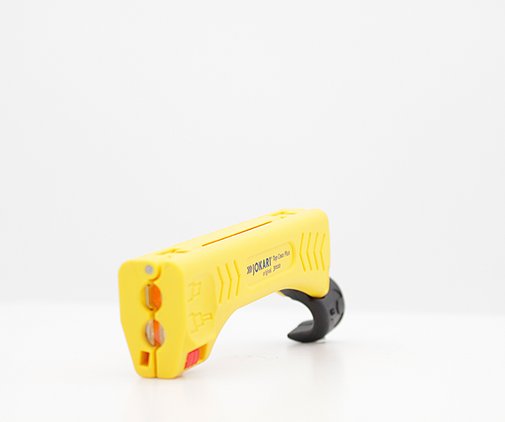

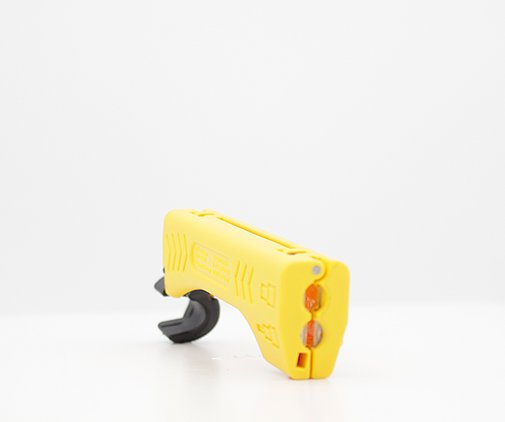

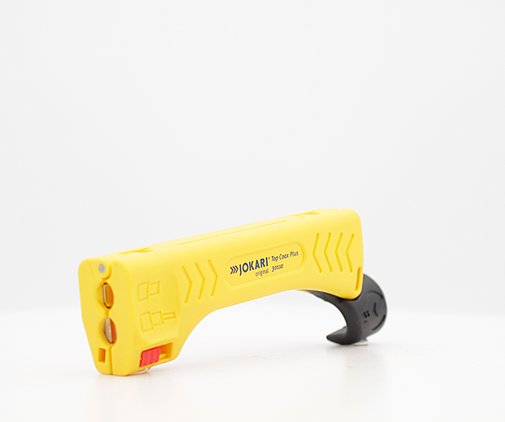

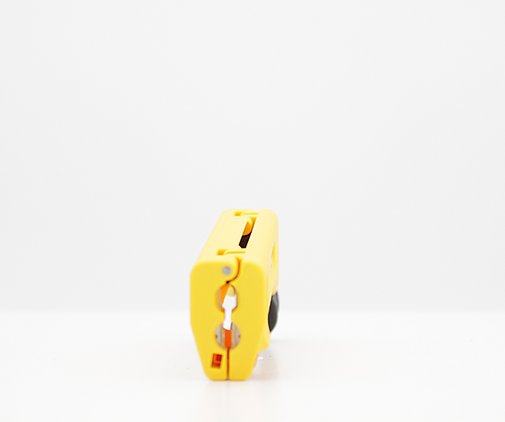

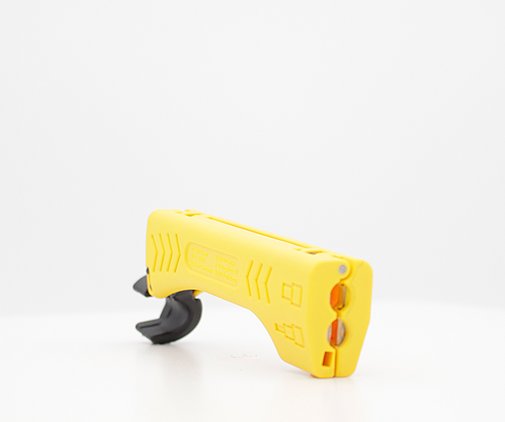

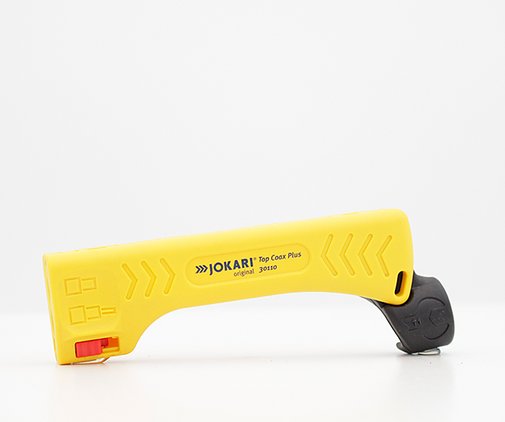

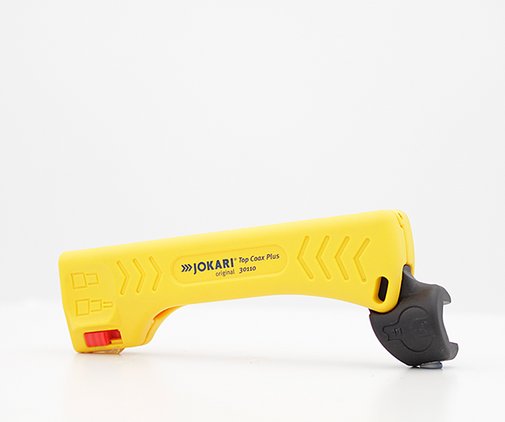

360-degree view
360-degree view
24,00 € RRP gross incl. VAT.
Art.-Nr. 30110

Cable Stripper Top Coax Plus

Coaxial cables ø 4.8-7.5mm | 3/16“ - 19/64“
24,00 € RRP gross incl. VAT.
Available dealers

Coaxial cables ø 4.8-7.5mm | 3/16“ - 19/64“

  • Area of application: radio and television reception technology
  • Compatibility: Suitable for all common coaxial cables with a diameter of 4.8 to 7.5 mm

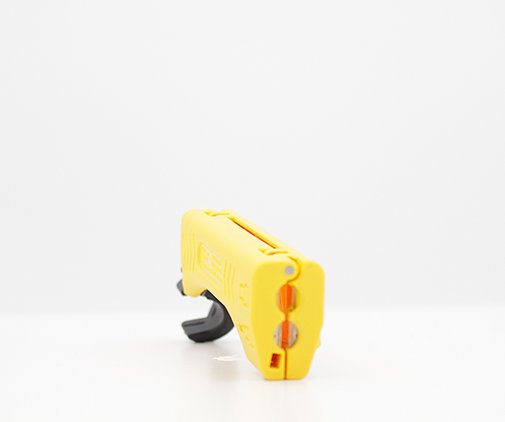

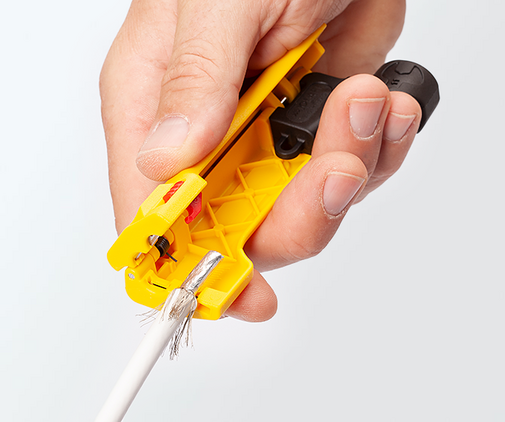

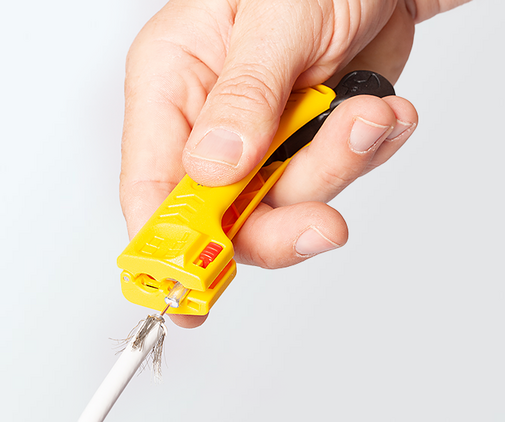

  • Stripping system: Two-stage system removes the outer sheath and dielectric step by step
  • Marking: embossed symbols for easy identification of the stripping stages
  • Stripping length: Can be determined using the embossed scale and any length thanks to the cable feedthrough

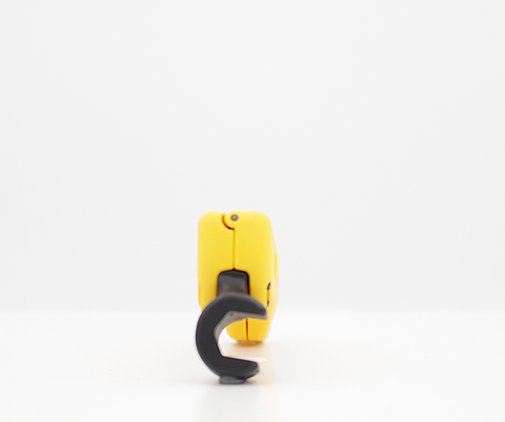

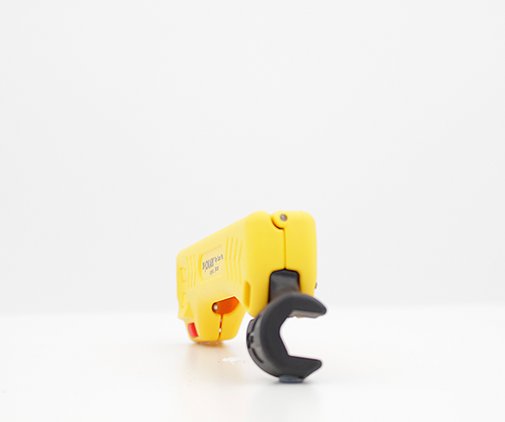

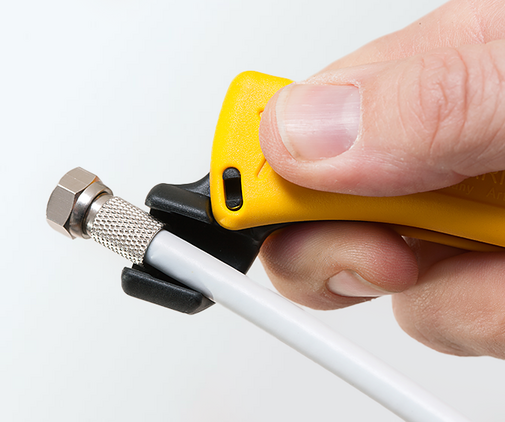

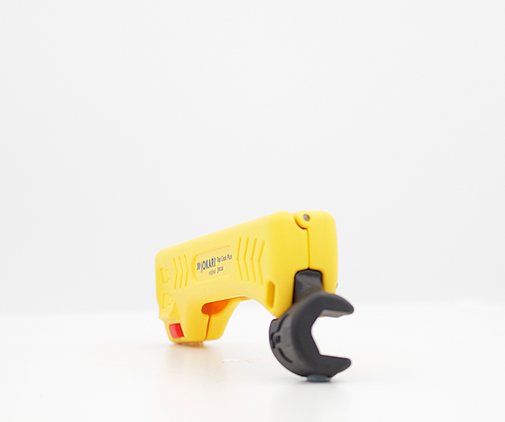

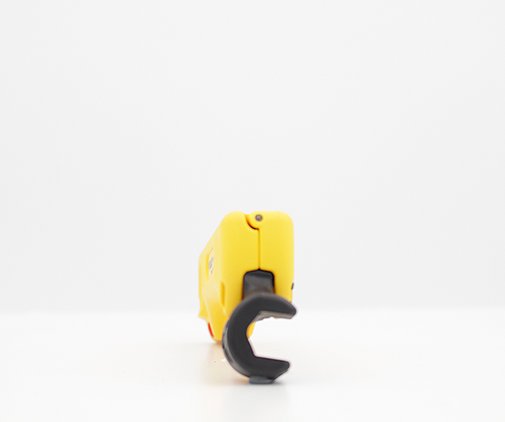

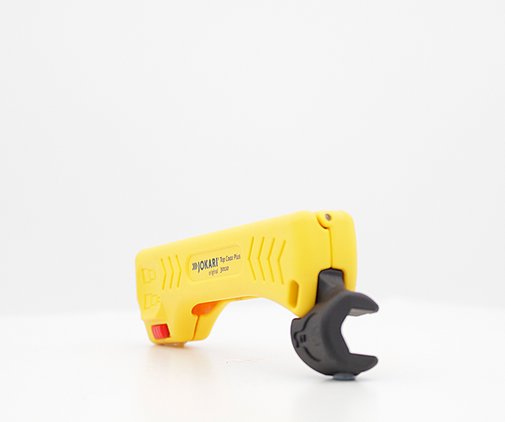

  • Integrated socket wrench SW11: For tightening F-connectors (HEX 11)
  • Blades: TiN-coated, reduces effort and increases precision
  • Ergonomics: Secure hold thanks to ergonomic thumb positioning
  • Safety: TÜV/GS-tested

Perfect for the following cables

Product description

Cable stripper for stripping all common coaxial cables with Ø 4.8 - 7.5 mm | 3/16" - 19/64", such as TV-Coax, RG58U/RG59U, RG6, PVC-Flex 3x0.75mm². With integrated socket wrench SW11mm made of highly rigid, glass fiber reinforced plastic for tightening F-connectors (HEX 11). The blades are titanium nitride coated, which ensures a higher cutting speed, less wear and a longer service life. 2 pairs of blades for two-stage stripping. Adjusting the cutting depth is not necessary. Precise stripping result, no damage to the inner shielding and the inner cable elements. Embossed scale for determining the stripping length from 5 to 20mm, the stripping length is not limited. Tool closure with locking element, including fastening device at the end of the handle. TÜV / GS tested.

Product details

Art.-Nr.:
30110
EAN:
4011391301108
HSCode:
82119300
Country of origin:
Bundesrepublik Deutschland
Net weight in grams:
33
Approx. dimensions (LxWxH in cm):
115x43,5x20

Downloads

Productvideo

Play video

Why to Buy

Play video
Why to buy - Why to buy -
Play video

Spare Parts

Art.-Nr. 30101
SW11 Top Coax
Details
6,00 € RRP gross incl. VAT.
