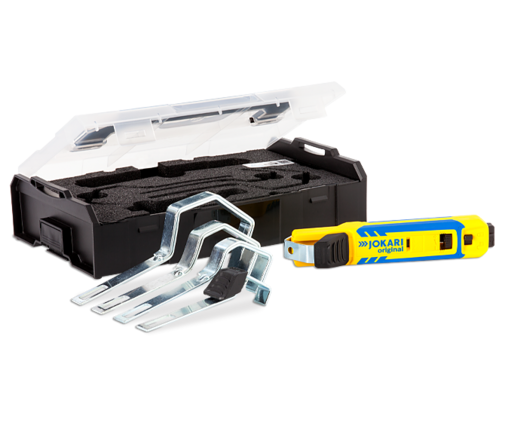

Cable Knife System 4-70 Set

Product description

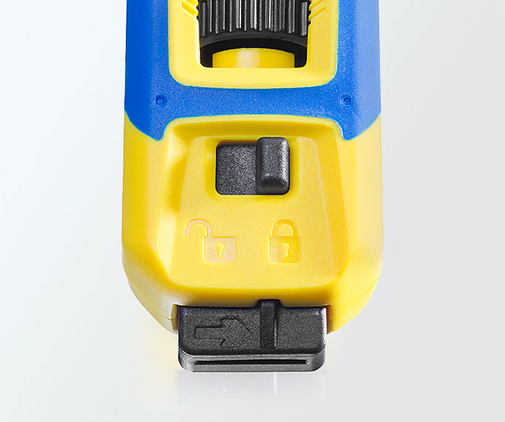

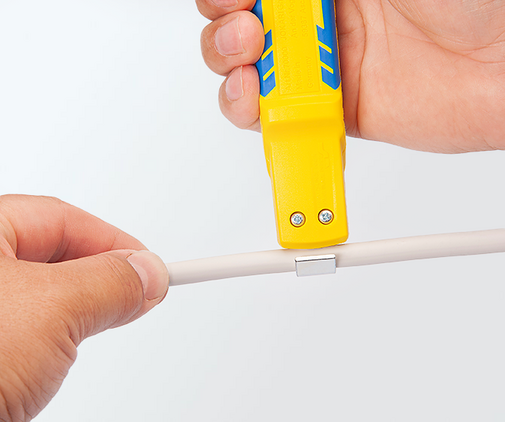

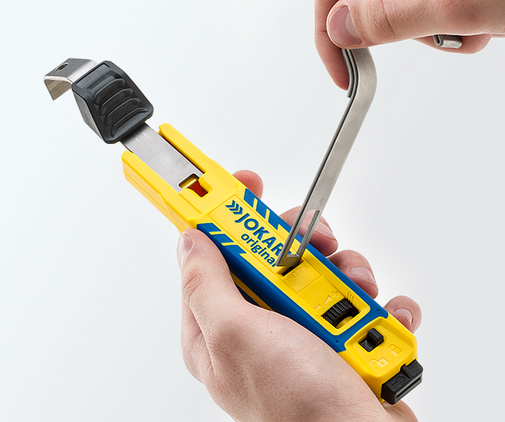

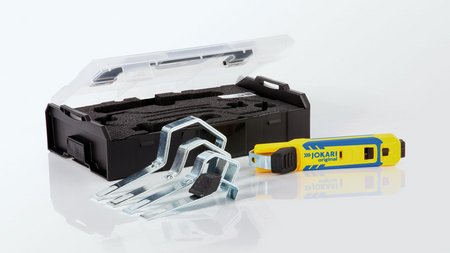

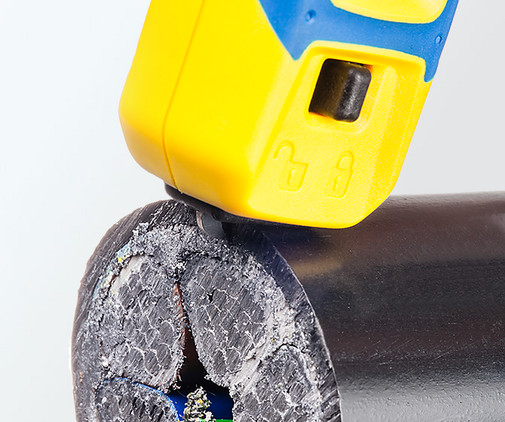

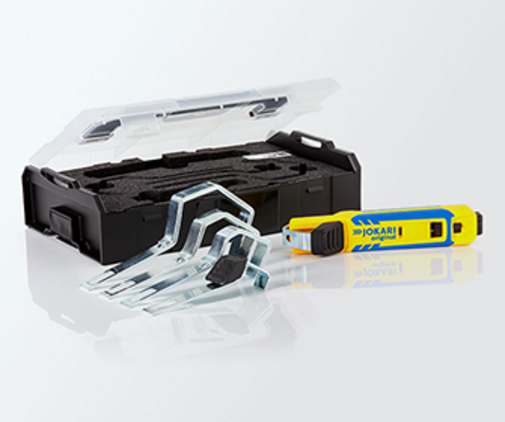

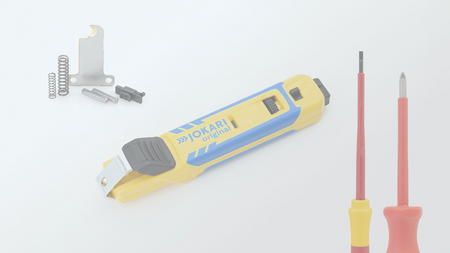

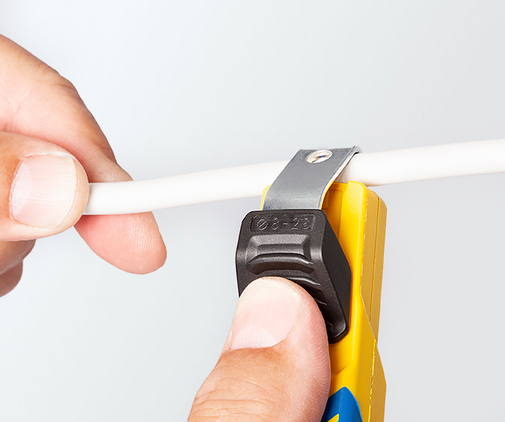

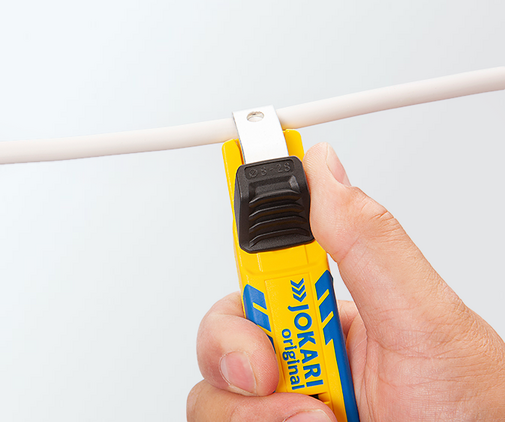

Cable knife set for common round cable types (e.g. NYM-J, NYY-J, NHXMH-J, e.g. 3x1.5, 5x2.5, 5x16). Thanks to the intelligent interchangeable bracket system, one tool is sufficient to strip the most common cable types, from 4 to 70 mm diameter | ø 0.16" - 2.75" Ø. The patented protective mechanism for the hook blade with locking switch prevents cuts. The integrated soft grip zones and the shape of the handle ensure optimal use of hand strength. Viewing window in the bracket to monitor the cutting process. The cutting depth of the inner blade can be adjusted up to 3mm using an adjusting screw. The cutting process of the blade automatically adjusts to the round and longitudinal cut. There is a inner blade in the housing as a spare part. The penetration depth of the hook blade can be adjusted over four levels (2.8 mm / 3.4 mm / 4.0 mm / 4.6 mm). The hook blade is also replaceable and available as a spare part. The tool set is supplied in the high-quality L-BOXX Mini system tool box from Sortimo - ideal for safe storage and perfect integration into existing organization systems. The tool is TÜV / GS tested.

Product details

Art.-Nr.:

71000

EAN:

4011391710009

HSCode:

82119300

Country of origin:

Bundesrepublik Deutschland

Net weight in grams:

670

Approx. dimensions (LxWxH in cm):

259x154x62

Downloads

• Datasheet
• User manual
