How to properly strip H07BQ-F PUR cables: This is how to do it safely and cleanly

PUR-sheathed cables like H07BQ-F 3×1.5 are among the most robust and demanding cable types regularly used in electrical work. They require particular care during stripping, as errors in this step can later lead to cable damage or broken conductors.

In this article, we explain why this cable type deserves special attention and how it can be processed reliably and in accordance with standards using the appropriate tools.

Why H07BQ-F can be a challenge

H07BQ F cable features a highly durable PUR sheath. Inside are finely stranded copper conductors that are sensitive to excessively deep or uncontrolled cutting. If the outer sheath is damaged during stripping, or even if the conductors are nicked, this often leads to breakage later on due to movement – a typical problem with highly flexible cables. This is precisely why choosing the right wire stripping tool is crucial.

Our tip for the right tool for PUR cables: SECURA No. 15

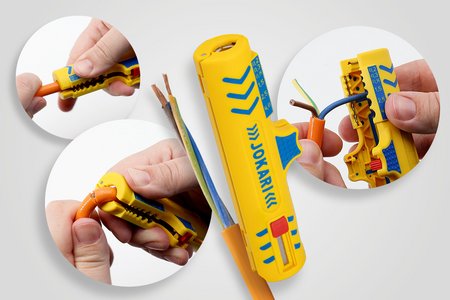

For safe processing of this cable, we recommend the cable stripper SECURA No. 15 (Art. no. 30155). It is ideally suited for common round cables with 8–13 mm ø and is perfectly matched to H07BQ F.

The SECURA No. 15 enables:

  • a controlled circular cut without damaging the conductors
  • clean opening of the cable sheath
  • precise stripping of individual conductors using integrated contour blades for 0.2–4.0 mm²

Here's how to proceed step by step

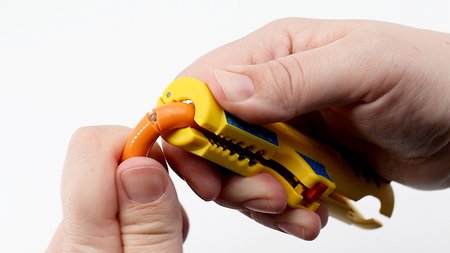

1. Circular cut with finesse
During the circular cut, the pressure should only be increased gradually. This allows the blades to glide smoothly into the PUR coating without cutting unnecessarily deeply.

2. Break open the cable sheath
After the circular cut, open the cable stripper, reposition it a little further towards the cable end close to the previous cut and cleanly break open the remaining sheath.

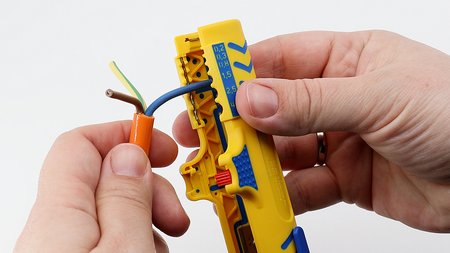

3. Precisely strip the inner conductor
The integrated precision contour blades then allow for gentle stripping of the individual wires – without damage.

Conclusion: Safe working practices begin with the right tools

PUR cables like H07BQ F place high demands on tools and handling. However, with the right cable stripper and a controlled procedure, stripping is reliable and clean.

Those who regularly work with PUR cables benefit from the SECURA No. 15 through:

  • precise cuts
  • minimized risk of conductor damage
  • efficient work, even with challenging cables
