JOKARI cableknife: From the traditional, patented JOKARI cable knife to the newly developed safety cable knife

Show filter

Cabletype

Select cable type
10160 "No 16 Secura" Sekura "No16Secura" "No.16Secura"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, MesserNYM NYM-Kabel "NYM Kabel" "NYM 4-16" "NYM 4 16" "NYM 4*16" "NYM 4x16" "isolierter Leiter" "massiver Leiter" "NYY 4-16" NYY NYY-Kabel "NYY Kabel" "NYY 4 16" "NYY 4*16" "NYY 4x16" H07RN-F "H07RN-F Kabel" "H07RN-F 4-16" "H07RN-F 4 16" "H07RN-F 4x16" "H07RN-F 4*16" H07BQ-F "H07BQ-F Kabel" "H07BQ-F 4-16" "H07BQ-F 4 16" "H07BQ-F 4x16" "H07BQ-F 4*16" Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife "insulated conductor "solid conductor" NYM-Cable "NYM Cable" "NYY Cablel" "H07RN-F Cable" "H07BQ-F Cable"No. 16 SECURANotice

No. 16 SECURA

4 - 16 mm Ø 5/32“ - 5/8“ Ø
10162 "No 16 Standard" Standart "No.16Standard" "No16Standard"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer"isolierter Leiter" "massiver Leiter" Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife "insulated conductor "solid conductor"No. 16 StandardNotice

No. 16 Standard

4 - 16 mm Ø 5/32“ - 5/8“ Ø
10270 "No 27 Secura" Sekura "No.27Secura" "No27Secura"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, MesserNYM NYM-Kabel "NYM Kabel" "NYM 8-28" "NYM 8 28" "NYM 8*28" "NYM 8x28" "isolierter Leiter" "massiver Leiter" "NYY 8-28" NYY NYY-Kabel "NYY Kabel" "NYY 8 28" "NYY 8*28" "NYY 8x28" H07RN-F "H07RN-F Kabel" "H07RN-F 8-28" "H07RN-F 8 28" "H07RN-F 8x28" "H07RN-F 8*28" H07BQ-F "H07BQ-F Kabel" "H07BQ-F 8-28" "H07BQ-F 8 28" "H07BQ-F 8x28" "H07BQ-F 8*28" Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife "insulated conductor "solid conductor" NYM-Cablel "NYM Cablel" NYY-Cable "NYY Cable" "H07RN-F Cablel" "H07BQ-F Cable"No. 27 SECURANotice

No. 27 SECURA

8 - 28 mm Ø 5/16“ - 1.1/8“ Ø
10272 "No 27 Standard" Standart "No.27Standard" "No.27 Standard"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer"isolierter Leiter" "massiver Leiter" Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife "insulated conductor "solid conductor"No. 27 StandardNotice

No. 27 Standard

8 - 28 mm Ø 5/16“ - 1.1/8“ Ø
10280 "No 28 H Secura" Sekura "No 28H Secura""No.28H Secura" "No.28HSecura"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife No. 28H SECURANotice

No. 28H SECURA

8 - 28 mm Ø 5/16“ - 1.1/8“ Ø
10281 "No 28 G Secura" Sekura "No 28G Secura" "No.28GSecura" "No.28G Secura"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife No. 28G SECURANotice

No. 28G SECURA

8 - 28 mm Ø 5/16“ - 1.1/8“ Ø
10282 "No 28 H Standard" Standart "No 28H Standard" "No.28HStandard" "No.28H Standard"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife No. 28H StandardNotice

No. 28H Standard

8 - 28 mm Ø 5/16“ - 1.1/8“ Ø
10285 "No 28 G Standard" Standart "No 28G Standard" "No.28GStandard" "No.28G Standard"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife No. 28G StandardNotice

No. 28G Standard

8 - 28 mm Ø 5/16“ - 1.1/8“ Ø
10350 "No 35" "No35" "No.35"Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife No. 35Notice

No. 35

27 - 35 mm Ø 1.5/64“ - 1.1/2“ Ø
10355 "No 35P" "No35P" "No.35P" Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer"Oil Paper Cable" Ölpapier Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife "oiled paper"No. 35PNotice

No. 35P

35 - 300 mm² | insulation 3 – 5 mm
10500 "No 50" "No.50" "No50" Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife No. 50Notice

No. 50

35 - 50 mm Ø 1.3/8“ - 1.15/16“ Ø
10700 "No 70" "No.70" "No70" Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife No. 70Notice

No. 70

Ø 50 - 70 mm | 1 31/32“ – 2 3/4“
19000 "No 70" "No.70" "No70" Kabelmesser, Abisolierer, abisolieren, "Kabel Werkzeug", Abisoliermaschine, Abisolierwerkzeug, Messer Cable knife, wire stripper, stripping, "cable tool" "stripping machine" "stripping tool" knife spare blade for cable knifeNotice

spare blade for cable knife

Packed in blister
70000 "Kabelmesser 4 70" "Kabelmesser 470" "System4-70" "Kabelmesser4-70" Kabelmesser 4-70"NYM NYM-Kabel "NYM Kabel" "NYM 4-16" "NYM 4 16" "NYM 4*16" "NYM 4x16" "NYM 8-28" NYM 8 28" "NYM 8*28" "NYM 8x28" "NYY 4-16" NYY NYY-Kabel "NYY Kabel" "NYY 4 16" "NYY 4*16" "NYY 4x16" "NYY 8-28" NYY NYY-Kabel "NYY Kabel" "NYY 8 28" "NYY 8*28" "NAYY 8x28" "NAYY 8-28" NAYY NAYY-Kabel "NAYY Kabel" "NAYY 8 28" "NAYY 8*28" "NAYY 8x28" H07RN-F H07RN-F-Kabel "H07RN-F Kabel" "H07RN-F 4-16" "H07RN-F 4 16" "H07RN-F 4*16" "H07RN-F 4x16" H07BQ-F H07BQ-F-Kabel "H07BQ-F Kabel" "H07BQ-F 4-16" "H07BQ-F 4 16" "H07BQ-F 4*16" "H07BQ-F 4x16" "H07BQ-F 8-28" "H07BQ-F 8 28" "H07BQ-F 8*28" "H07BQ-F 8x28" "H07RN-F 8-28" "H07RN-F 8 28" "H07RN-F 8*28" "H07RN-F 8x28" YSLY-JZ YSLY-JZ-Kabel "YSLY-JZ 8-28" "YSLY-JZ 8 28" "YSLY-JZ 8*28" "YSLY-JZ 8x28" N J-Y(ST)Y "J-Y(ST)Y Kabel" "J-Y(ST)Y 8-28" "J-Y(ST)Y 8 28" "J-Y(ST)Y 8x28" "J-Y(ST)Y 8*28" "BMK J-Y(St)Y" "NHXH E90" TPE-U NYM-Cable "NYM Cable" NYY-Cable "NYY Cable" NYY-Cable "NYY Cable" NAYY-Cablel "NAYY Cable" H07RN-F-Cable "H07RN-F Cable" "H07BQ-F-Cable "H07BQ-F Cable" YSLY-JZ-Cable "J-Y(ST)Y Cable"Cable Knife System 4-70Notice

Cable Knife System 4-70

4 - 70 mm Ø 0.16" - 2.75" Ø

What are cable knives and what are they used for?

The world´s first cable knife

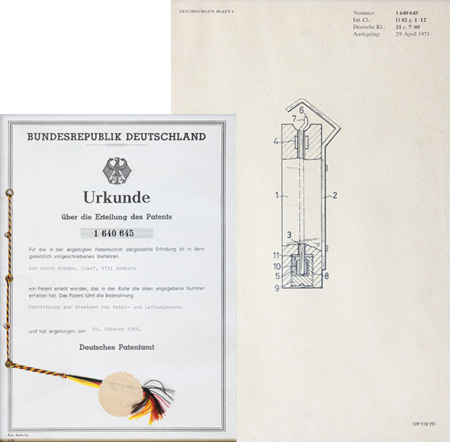

In 1966, JOKARI received the world's first patent for the revolutionary JOKARI knife.

Cable knives are used in the field of cable processing. They make it easier for the user to remove the outer cable insulation without damaging the inner conductors and are needed every day in the daily routine of many professional users, for example in house installations. For many electricians, the "JOKARI knife" is the generic term for the cable knife – tried and tested millions of times around the world.

A long service life, simple and time-saving application, extremely precise cable stripping results and 100% Made in Germany - these features of the JOKARI cable knife are convincing.
This special wire stripping knife replaces the cutter knife, carpet knife or side cutter for cable stripping work. The use of these tools for cable processing is not recommended as the risk of injury to the user and the internal wires is very high.

Did you already knew? In 1966, JOKARI received the world's first patent for the revolutionary JOKARI knife and is therefore the inventor of the cable knife.



How is a cable knife constructed?

A modern cable knife consists of a plastic handle, a holding device for the cable and a knife for cutting the cable insulation with a circular and longitudinal cut.
The handle of the modern version of this tool is so designed in such a way that the user has the most secure grip possible, which enables clean cable routing. The pressure bracket on the top of the cable knife pulls the cable securely to the inner knife and, together with the handle, ensures that the cable knife is guided precisely.



How are cable knives used?

Schnitttiefeneinstellung beim Kabelmesser
Adjustment oft he cutting depth at the cable knive

Step 1: First, the cutting depth of the cable knife is set with the help of the adjusting screw so that the insulation is just not completely severed. This ensures that the insulation of the inner conductors remains undamaged.

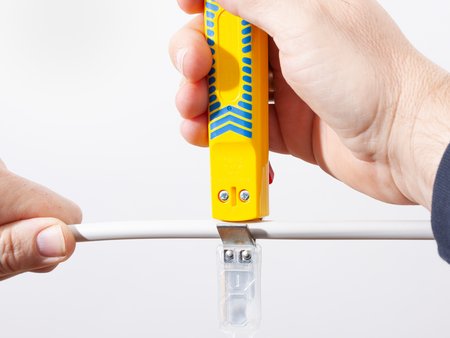

Roundcut at the cable knife

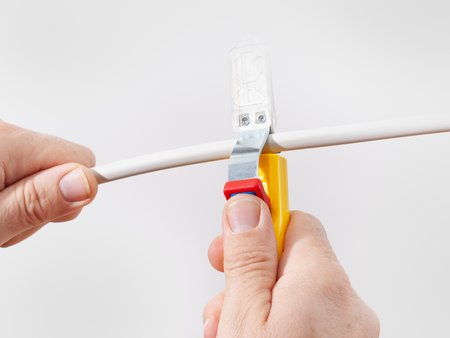

Inserting the cable in the bracket for he round cut.

Step 2: The cable is inserted between the inner knife and the bracket at the required stripping length by sliding the pressure bracket on. The inner knife is pierced into the cable sheath by gently pressing on the bracket.



Roundcut at the cable knife
Execution of the round cut by rotating the cable knife around the cable.

Step 3: First a simple circular cut is made. This is done by rotating the cable knife around the cable.

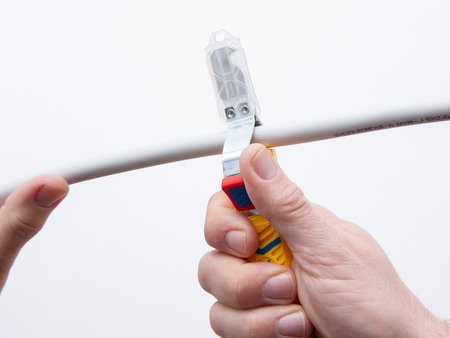

Längsschnitt mit dem Kabelmesser
The transition from the circular to the longitudinal section is seamless.

Step 4: A longitudinal cut can then be made seamlessly. The cable sheat can now be easily broken and removed.

The inner knife is freely rotatable. The blade geometry ensures that cuts are made in the desired direction (round or longitudinal cut). The tool does not have to be removed because it simply follows the user's hand movements.

Even cutting longer stretches of cable is no problem with a JOKARI cable knife.



What should be considered when buying a cable knife?

Changing of the blades is done very fast.

A good cable knife should have a good quality blade. This should not only be very sharp, but also be made of a good and stable material. All JOKARI cable knives are equipped with high-quality steel blades from Solingen.

Did you already knew? A spare blade is built into the inner of all JOKARI cable knives.

Changing the blade is very easy and can be done in just a few moments.



Which cable knife models does JOKARI have?

The JOKARI range offers different cable knife designs for processing the most common round cable types (e.g. NYM or NYY cables).

In addition to the proven Standard and Secura cable knives, the user will also find with a safety cable cutter with the Cable Knife System 4-70. With the newly developed protective mechanism, cut injuries are a thing of the past. In addition, thanks to the intelligent bracket change system, one tool is all you need to strip the most common cable types, from 4 to 70 mm ø.



What is the difference between a cable knife, cable stripper or wire stripper?

A cable knife is an electrician's traditional, conventional tool for strip a long length of cable insulation lengthwise for convenient access to the inner conductors.

Cable strippers are ideal for working in deeper levels like in wall outlets. There is usually limited space available to remove the outer cable insulation. A cable knife can sometimes not be used due to the lack of space. Many cable strippers also have a function for safely stripping the individual wires. Their working range starts at 0.8mm2 – the smallest working range of cable knives is 4mm ø.
The maximum cable diameter that cable strippers can used for is 15mm ø. For larger cables (up to 70mm ø) cable knives are more likely to be used.

Wire strippers with their shape of a pistol are perfect for automatically processing the inner conductors in order to connect a lamp or socket, for example.

All you have to do is insert the inner conductor into the pliers and press them. The insulation is automatically stripped by the blade mechanism.



The range of wire stripping tools is huge. How do I find the right wire stripper for me?

Which wire stripping tool is most suitable to professionally process a specific cable type? The JOKARI cable database gives the right answer to this question. It supports the user in finding a professional solution quickly and easily. The user enters the cable type into the search field and receives suggestions for the right JOKARI wire stripping tool from thousands of data sets within seconds.

Further interesting information on the topic of cableknife can be found on JO!STORY, the JOKARI blog.
